Berserk robotic complex fulfils the tasks of optical reconnaissance, fire cover and defense of important stationary objects, air defense positions, and artillery sites, and fire support for ground assault groups.

Combat ready complex can quickly and efficiently destroy unexpectedly appeared UAVs, as well as firing points and enemy troops.

Most often, it is required in transient combat clashes with paramilitary forces or small, but heavily armed, dispersed groups, i.e. during counterinsurgency and counter-terrorism actions.

It is designed for:

• destruction of UAVs while organizing defense of important strategic stationary objects
(nuclear power plants, airfields, etc.), air defense positions, artillery sites;
• fire support of ground assault groups;
• destruction of lightly armored and automotive vehicles;
• ground and airspace reconnaissance.

Specifications

Operating temperature range: -35°С...+55°С
Control range LOS: 5000 m
Armament: 2 x GShG-7,62
Rate of fire: 6000 rounds per min per barrel
Speed: 5 km/h
Power reserve:30 km
Passive mode operating time: 24h

Ensuring long-range observation and accurate target capture is one of the requirements that are presented today to various types of combat modules.

That is why the cutting-edge multichannel day/night sights and optoelectronic stations (OES) are actively introduced into their composition, capable of operating in the most adverse and extreme weather conditions
SEE ALSO
"BERSERK"
UNMANNED GROUND VEHICLE
The mobile platform consists of:

- tracked chassis;
- power supply system;
- TV surveillance module;
- positioning and control module.

The chassis provides maneuverability of a robotic platform on both plane surface and rough terrain. Independent tracks control provides the ability to turn round on the spot reducing the turning radius to zero. The possibility of using different configurations of the tracks allows the complex to increase cross-country ability in specific climatic conditions.

The Berserk is controlled remotely. The control panel, which configuration can be changed on request, is used to control the complex remotely.

Command acquisition and transmission range:

- in open areas, km: 5
- on rough terrain, km 1

Video transmission range:

- in open areas, km: 3
- on rough terrain, km: 0.7

Cross Country Speed: >5 km/h

Stand-by operating time:

• using batteries: 24h
• using gasoline generator: 72h

Power reserve using gasoline generator: 30Km

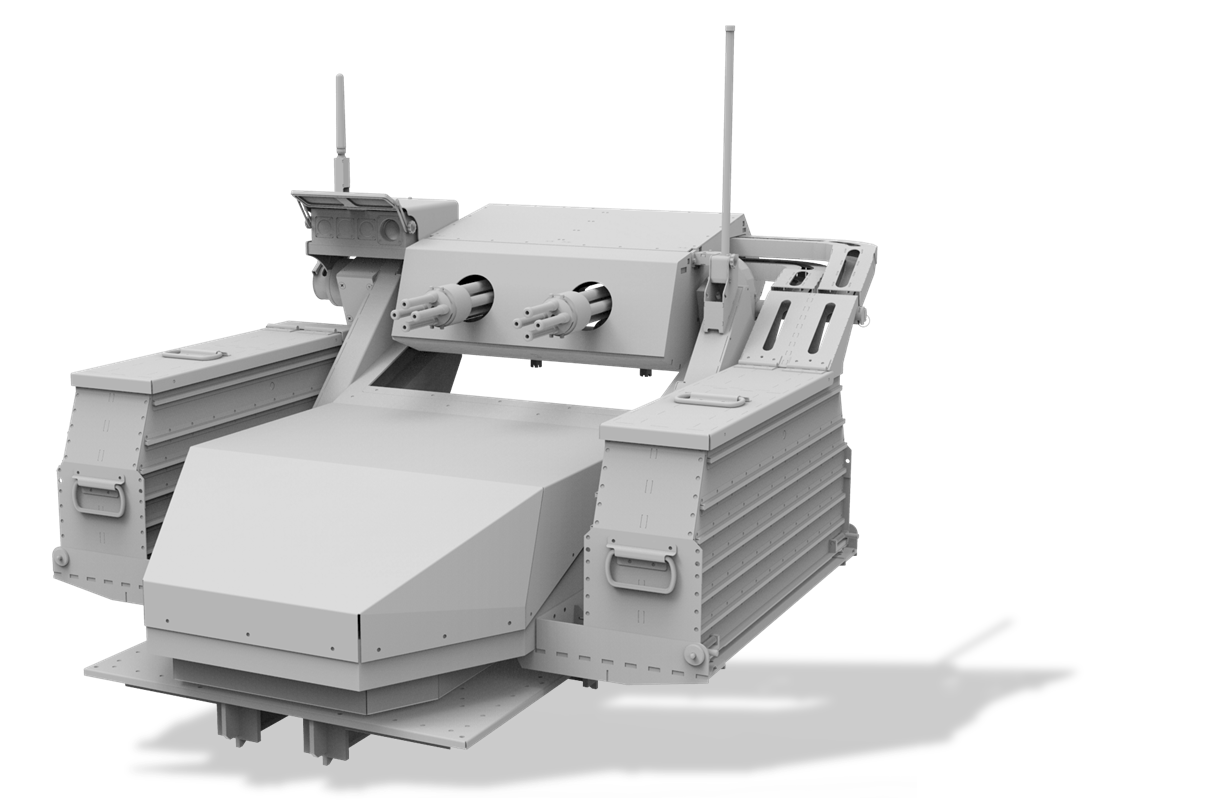

ROBOTIC COMPLEX / COMBAT MODULE
BERSERK Multipurpose Support System
2хGShG-7,62 (9-А-622MB) are able to fight effectively against unmanned aerial vehicles and enemy troops at middle and long range
Optical-electronic station “Chizh” provides detection, recognition and tracking of the target day and night in any weather
OES “Chizh”
Optical-electronic station “Chizh” based on the multispectral optical-electronic station that allows reconnaissance of airspace around the clock, as well as automatic detection and tracking of targets with the determination of their exact position and calculate the lead pointfor firing.

The digital computer calculates the lead point depending on the type of target, its distance and velocity vector, taking into account ballistic calculations.
Armament
Equipped with two aircraft machine-guns GShG-7,62
Characteristic GShG-7,62

Machine gun weight – 18,5-19 kg

Round– 7,62 х 54mm R with steel core light bullet, Т-46, B-32 and brass cartridge case

Rate of fire – 400 up to 6000 rounds per minute

Barrel life – 40 000 rounds

Shooting range

Maximum shooting range – 1000 m

Effective shooting range – 300-600 m

Allowance of ammunition – 2 х 1500 rounds

Barrel velocity – 875 m/s
Rotating platform
The rotating platform uses powerful electric drives that allow you to rotate the combat module 360 degrees in just 6 seconds.

This speed is necessary for a quick response to rapidly changing air environment.

The ruggedness of the structural elements of the rotating platform allows it to withstand the relatively high recoil of the coaxial four-barrels machine guns.
Rotation range of the reconnaissance-firing platform:
- Elevation, degrees: -4...+70
- Azimuth, degrees: 360

Guidance accuracy in both axes, mrad: 2
Guidance angles measurement accuracy, mrad: 0.5

Aiming (tracking) speed:
- Horizontal, degrees: 60
- horizontal, degrees: 25

Accuracy of automatic tracking in both axes relative to the target, mrad: 10
Operating temperature range, °С: 30...+55

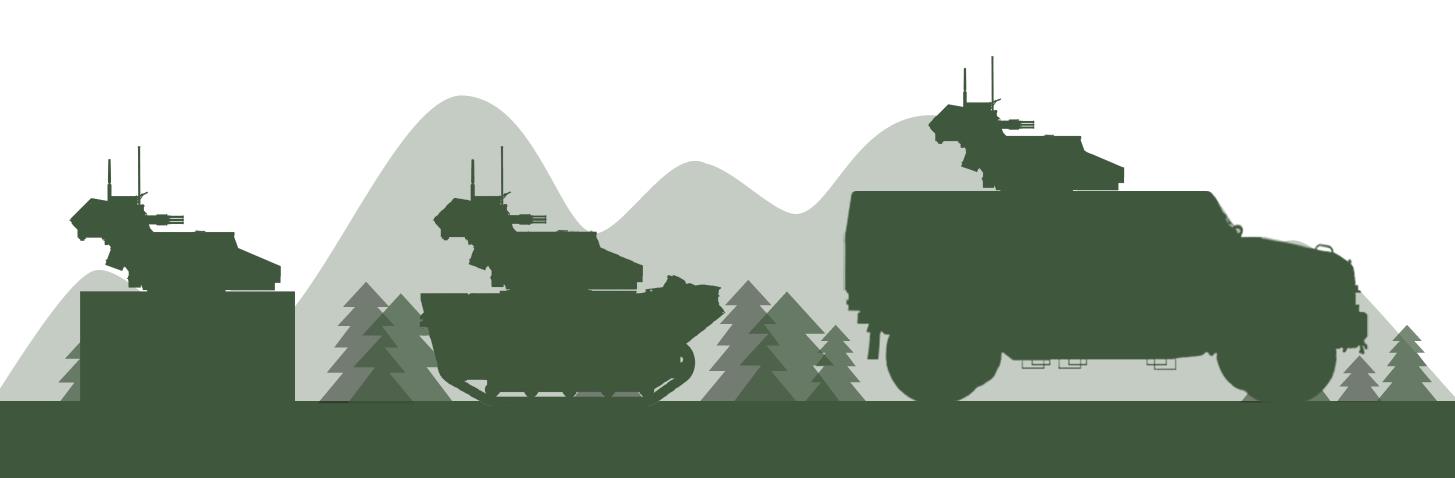

The universal seat allows you to install the combat module stationary and on various types of vehicles. At the same time, it can function both in automatic and in remotely controlled modes.
Optical-electronic station "Chizh", installed on the combat module, can also be used to monitor the terrain while transmitting all intelligence information to the command post.
OPTICS
Modern optical system installed on the robotic complex as a guidance device allows it to detect air and ground targets in a wide field of view in passive mode around the clock.

Advanced software automatically acquires a target, identifies it by its type and transfers full coordinates to the control panel. It has the ability to work in automatic mode in a given sector of responsibility for specified target types.

The system has a built-in ballistic calculator and target leading system for the target destruction.
Coverage range of optical motion capture systems

- television channel: 200m
- thermal imaging channel: 200m
- television channel (rear camera): 20m

Optical homing system

Television channel receiver resolution: 1600х1200
Thermal imaging channel receiver resolution: 640х480
Narrow field of view: 12°x9°
Wide field of view: 16°x27°
Frame rate: 30 Hz
Power supply: 9-32 V
Power consumption: 120 W
Operating temperature range: 40°С..+50°С
Operator-driver observation system
Homing system
Twin aircraft machine guns GShG-7.62 allow:

- to destroy UAVs while organizing defense of important strategic stationary objects (nuclear power plants, airfields, etc.), air defense positions, artillery sites;
- to destroy low flying helicopters;
- to destroy lightly armored and automotive vehicles;
- to hit enemy troops both in open space and in light type shelters;
- fire support of ground assault groups.

Calculation of drone assured destruction

Initial data:
Target Type – Drone
Distance to the goal – 200 m
Destruction time – 1.5 seconds.
Kill probability – 95%
ARMAMENT


200mm
200mm
1000
Low flying targets destruction
Optical reconnaissance
Noiselessness and low visibility
Light armored and automotive vehicles destruction
Detection range, m
70
150
440
200
400
1200
3300
1100
550
Identification (on the STANAG 4347) / recognition/ detection
2 500 mm
1 400 mm
1 430 mm
WEIGHT
2 200 Kg
