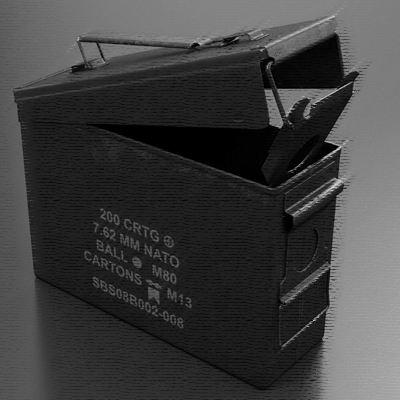

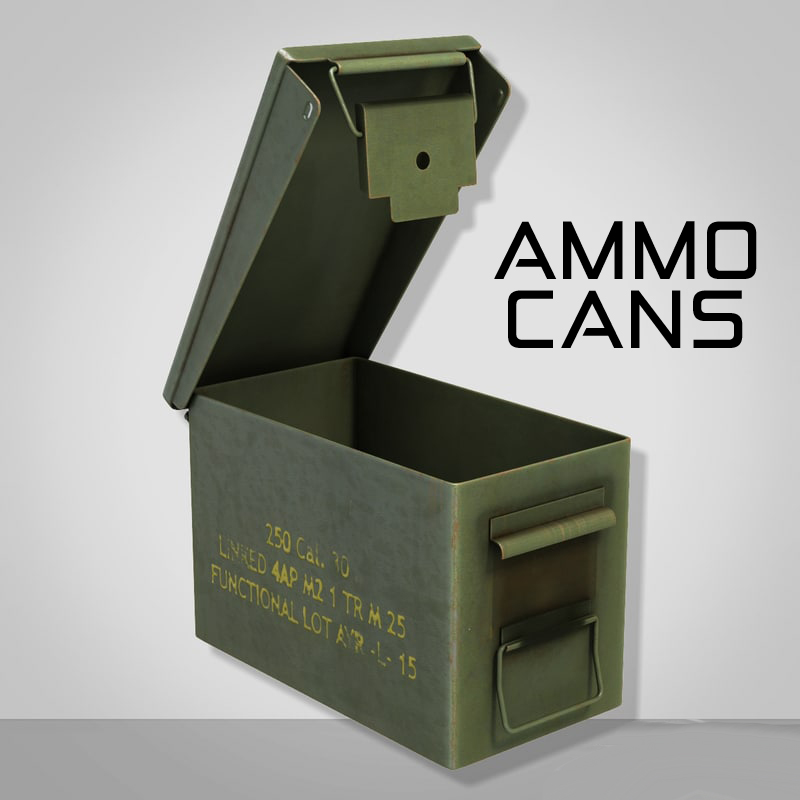

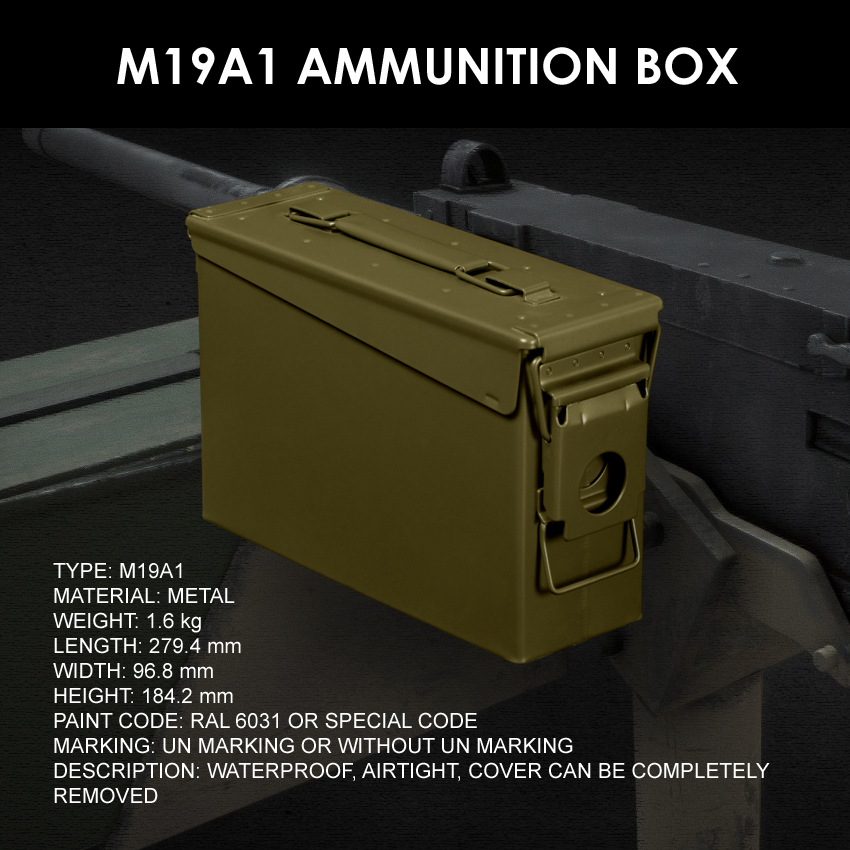

M19A1 Small Ammunition Box (7.62mm)

FTD-STD-34079 Army green, more colors like RAL 6031 Olive green/ Black / BS499 Service Brown etc available on request.

Powder Coatings, Etching Primer, Wet Painting can also be demanded

Weight: 3.90bs

Inside Dimensions(inches/mm): L10-5/64xW3-7/16xH6-15/16 (256.0x87.3x164.3)

Outside Dimensions(inches/mm): L 11 xW3-13/16xH7-1/4 (279.4x96.8x 184.2)

Linked Rounds: ~200 rounds

Loose Rounds: ~400 rounds

Alternative Caliber: .30-06 Springfield

Loose Rounds: ~300–350 rounds

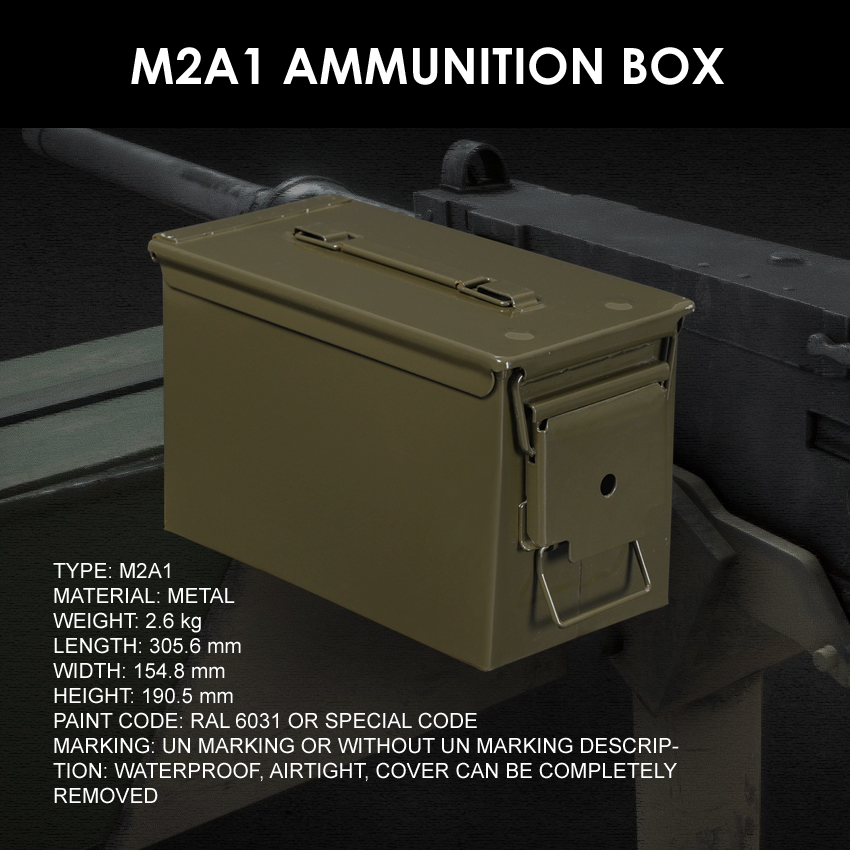

M2A1 Small Ammunition Box (5.56mm)

FTD-STD-34079 Army green, more colors like RAL 6031 Olive green/ Black / BS499 Service Brown etc available on request.

Powder Coatings, Etching Primer, Wet Painting can also be demanded.

Weight: 5.4Lbs

Inside Dimensions(inches/mm): L11XW5-9/16XH6-3/4 (279.4X141.3X171.5)

Outside Dimensions(inches/mm): L12-1/32xW6-3/22xH7-1/2 (305.6x154.8x190.5)

Caliber: 5.56mm NATO

Loose Rounds: ~840 rounds (in 10-round stripper clips)

Linked Rounds: ~600 rounds

Alternative Caliber: 7.62mm NATO

Linked Rounds: ~200–250 rounds

Loose Rounds: ~400 rounds

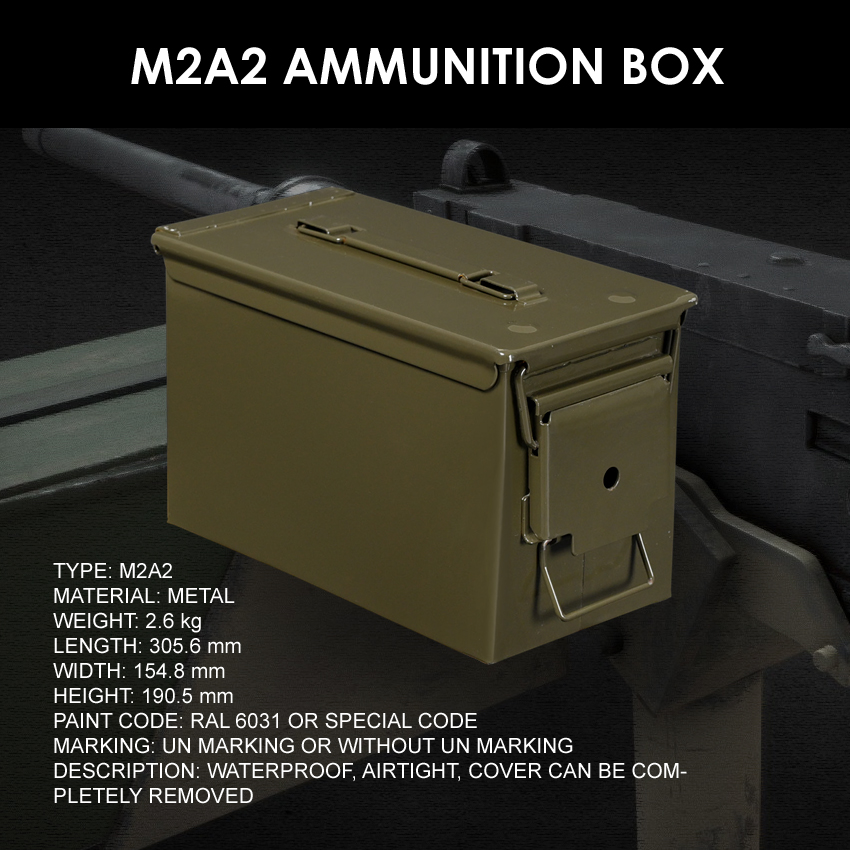

M2A2 Small Ammunition Box (5.56mm)

FTD-STD-34079 Army green, more colors like RAL 6031 Olive green/ Black / BS499 Service Brown etc available on request.

Powder Coatings, Etching Primer, Wet Painting can also be demanded.

Weight: 5.4Lbs

Inside Dimensions(inches/mm): L11XW5-9/16XH6-3/4 (279.4X141.3X171.5)

Outside Dimensions(inches/mm):  L12-1/32xW6-3/22xH7-1/2 (305.6x154.8x190.5)

Caliber: 5.56mm NATO

Linked Rounds: ~600 (5.56mm NATO)

Loose Rounds: ~840 (5.56mm NATO)

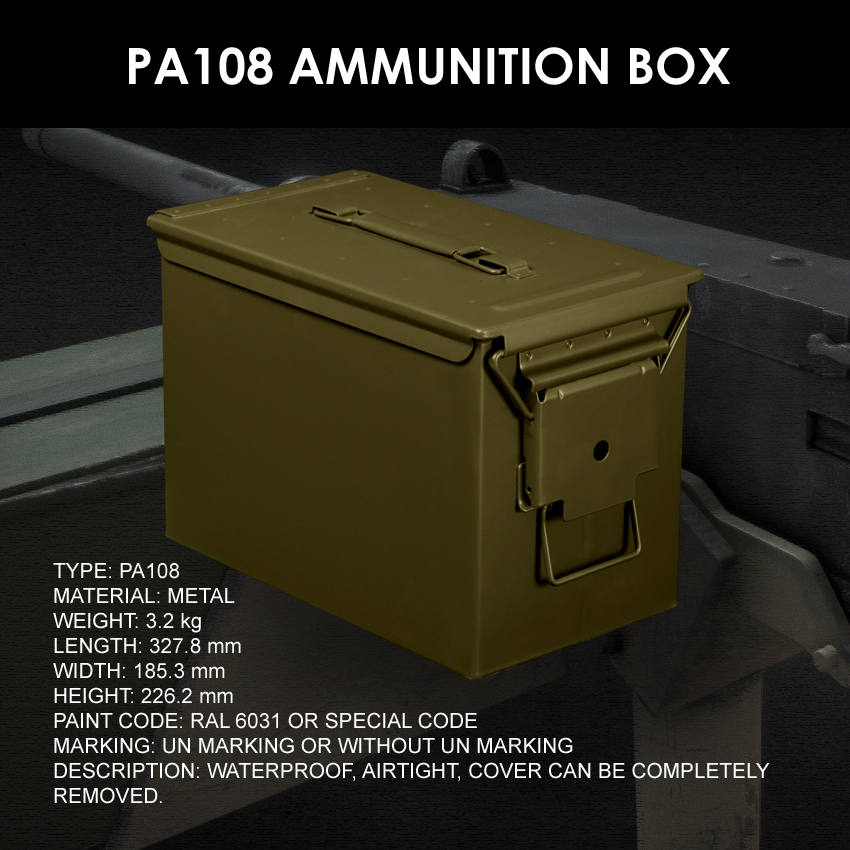

PA108 Medium Ammunition Box (5.56mm)

FTD-STD-34079 Army green, more colors like RAL 6031 Olive green/ Black / BS499 Service Brown etc available on request.

Powder Coatings, Etching Primer, Wet Painting can also be demanded.

Weight: 7.0lbs

Inside Dimensions(inches/mm): L11.875xW6.75xH8.175 (301.63x171.45x207.65)

Outside Dimensions(inches/mm): L12.906XW7.297XH8.906 (327.81X185.34X226.21)

Caliber: 5.56mm NATO

Linked Rounds: ~1,000 rounds

Loose Rounds: ~1,200–1,500 rounds

Alternative Caliber: 7.62mm NATO

Linked Rounds: ~400 rounds

Loose Rounds: ~600–700 rounds

30Cal Tank

Weight: 4.0Lbs

Inside Dimensions(inches/mm): L 10-1/4XW3-3/8XH6-3/4 260.4X85.7 X 171.5

Outside Dimensions(inches/mm): L 10-7/8XW3-3/4XH7-1/4 276.2X95.2X184.2

Caliber: 7.62mm NATO

Linked Rounds: ~220 rounds

Loose Rounds: ~400 rounds

Alternative Caliber: 5.56mm NATO

Loose Rounds: ~600–700 rounds

NR68C

Weight: 3.77Lbs

Inside Dimensions(inches/mm): L9.96XW2.91 XH6.65 252.9X73.9X168.9

Outside Dimensions(inches/mm): L 10.85XW3.34XH7.40 275.6X84.8X187.9

Caliber: 5.56mm NATO

Linked Rounds: ~300 rounds

Loose Rounds: ~350–400 rounds

Alternative Caliber: 7.62mm NATO

Linked Rounds: ~150–200 rounds

Loose Rounds: ~300 rounds

M61

Weight: 4.07Lbs

Inside Dimensions(inches/mm): L 11.83XW2.88XH6.57 300.4X73X167

Outside Dimensions(inches/mm): L 12.7 XW3.35 X H7.43 322.5X85X188.7

Caliber: 5.56mm NATO

Linked Rounds: ~400 rounds

Loose Rounds: ~500 rounds

Alternative Caliber: 7.62mm NATO

Linked Rounds: ~150–200 rounds

H84

Weight: 3.57Lbs

Inside Dimensions(inches/mm): L 10.08XW2.87 XH6.12

256.03 X72.90X 155.45 Outside Dimensions(inches/mm): L11.063XW3.268XH 6.89  281X83X175

Caliber: 5.56mm NATO

Linked Rounds: ~300 rounds

Loose Rounds: ~350–400 rounds

Alternative Caliber: 7.62mm NATO

Linked Rounds: ~120–180 rounds

H83

Weight: 5.73Lbs

Inside Dimensions(inches/mm): L 11 XW5-9/16XH6-3/4 279.4X 141.27X 171.7

Outside Dimensions(inches/mm): L 12-1/32 XW6-3/32 X H7-1/2 305.6X 154.8X190.5

Caliber: 5.56mm NATO

Linked Rounds: ~600 rounds

Loose Rounds: ~840 rounds

Alternative Caliber: 7.62mm NATO

Linked Rounds: ~200–250 rounds

PA19

Weight: 6.7Lbs

Inside Dimensions(inches/mm): L 11 XW5-9/16XH9-8/16 279.4X 141.3 X242.9

Outside Dimensions(inches/mm): L 12-1/32 XW6-3/32 X H10-5/16 305.6X154.8X261.9

Caliber: 5.56mm NATO

Linked Rounds: ~900 rounds

Loose Rounds: ~1,200–1,400 rounds

Alternative Caliber: 7.62mm NATO

Linked Rounds: ~400–500 rounds

PA60 (60mm)

Weight: 7.2Lbs

Inside Dimensions(inches/mm): L 11XW5-9/16XH12-19/32 279.4X141.3X319.9

Outside Dimensions(inches/mm): L 12-1/32XW6-3/32 X H13-25/64 305.6X154.8X340.1

Caliber: 5.56mm NATO

Linked Rounds: ~1,500 rounds

Loose Rounds: ~2,000 rounds

Alternative Caliber: 7.62mm NATO

Linked Rounds: ~600 rounds

Loose Rounds: ~1,000 rounds

PA70 (60mm)

Weight: 7.91 Lbs

Inside Dimensions(inches/mm): L11XW5-9/16XH15-25/32 279.4X141.3X400.8

Outside Dimensions(inches/mm): L12-1/32XW6-3/32XH16-35/64 305.6X154.8X420.3

60mm Mortar Rounds: Designed to hold 5–6 rounds of 60mm mortar shells.

Also,

5.56mm NATO: Linked Rounds: ~2,000 rounds (linked) and Loose Rounds: ~2,300 rounds (loose or packaged in stripper clips)

7.62mm NATO: Linked Rounds: ~800 rounds (linked) and Loose Rounds: ~1,200 rounds (loose)

.50 BMG (12.7mm): Linked Rounds: ~300–350 rounds

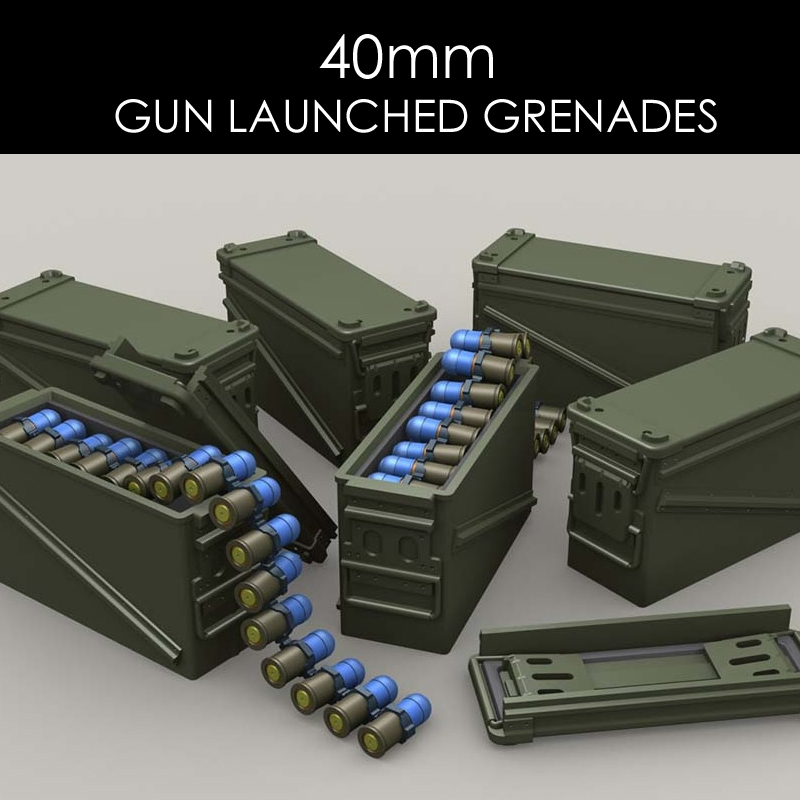

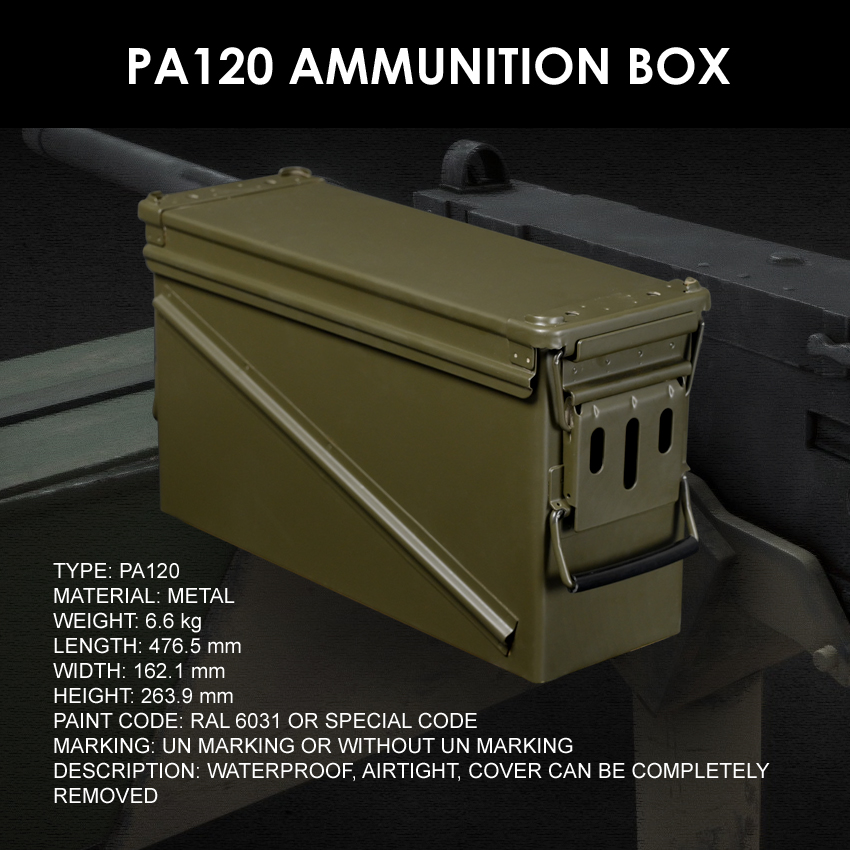

PA120 (40mm)

Weight: 14.5Lbs

Inside Dimensions(inches/mm): L 17.25XW5.50XH9.50 438.2X 139.7 X241.3

Outside Dimensions(inches/mm): L 18.76XW6.38XH10.39 476.5X162.1 X263.9

Caliber: 40mm grenade rounds

Capacity: ~50–60 rounds (40mm grenades)

Alternative Caliber: 5.56mm NATO or 7.62mm NATO

5.56mm Loose Rounds: ~2,000 rounds

7.62mm Linked Rounds: ~600–800 rounds

PA125 (25mm)

Weight: 13.01 Lbs

Inside Dimensions(inches/mm): L 12.87XW5.009XH13.343 326.9X 127.23X338.91

Outside Dimensions (inches/mm): L 14.34XW5.72XH13.87 364.24X 145.29X352.3

Caliber: 25mm autocannon rounds

Capacity: ~50–60 rounds (25mm)

Alternative Caliber: 5.56mm NATO or 7.62mm NATO

5.56mm Loose Rounds: ~1,500–2,000 rounds

7.62mm Linked Rounds: ~700 rounds

PA156 (81mm)

Weight: 14.5Lbs

Inside Dimensions(inches/mm): L 12.870XW5.009XH22.480 326.90X 127.23X570.99

Outside Dimensions(inches/mm): L 14.340XW5.720XH22.900 364.24X 145.29X581.66

Caliber: 81mm mortar rounds

Capacity: ~10–12 rounds (81mm)

Alternative Caliber: 5.56mm NATO or 7.62mm NATO

5.56mm Loose Rounds: ~3,500 rounds

7.62mm Linked Rounds: ~1,000 rounds

PA157 (81mm)

Weight: 20.0Lbs

Inside Dimensions(inches/mm): L12.870XW5.009XH28.730 326.90X 127.23X729.74

Outside Dimensions(inches/mm): L14.340XW5.720XH29.150 364.24X 145.29X740.41

Caliber: 81mm mortar rounds

Capacity: ~15 rounds (81mm)

Alternative Caliber: 5.56mm NATO or 7.62mm NATO

5.56mm Loose Rounds: ~4,000 rounds

7.62mm Linked Rounds: ~1,200 rounds

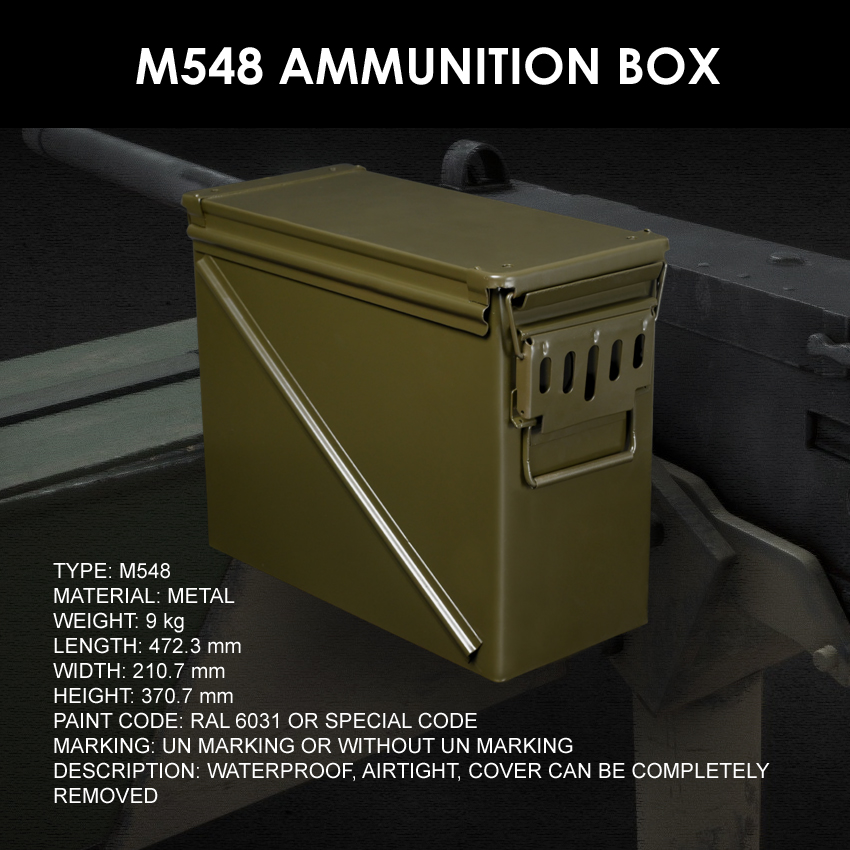

M548 (20mm)

Weight: 19.8Lbs

Inside Dimensions(inches/mm): L 17-1/4XW7-7/16XH13-63/64 438.2 X 188.9X355.2

Outside Dimensions(inches/mm): L 18-19/32XW8-19/64XH14-19/32 472.3 X210. 7X370.7

Caliber: 20mm autocannon rounds

Capacity: ~40–50 rounds (20mm)

Alternative Caliber: 5.56mm NATO or 7.62mm NATO

5.56mm Loose Rounds: ~4,000 rounds

7.62mm Linked Rounds: ~1,500 rou

M592 (25mm)

Weight: 24.25

Inside Dimensions(inches/mm): L 17-1/4XW8-3/4XH14-1/16 440X220X355.8

Outside Dimensions(inches/mm): L 18-11/16XW9-1/2XH14-1/2 472.3X241.3X370.7

Caliber: 25mm autocannon rounds

Capacity: ~40–50 rounds (25mm)

Alternative Caliber: 5.56mm NATO or 7.62mm NATO

5.56mm Loose Rounds: ~5,000 rounds

7.62mm Linked Rounds: ~2,000 rounds

PA154 (120mm)

Weight: 22.0lbs

Inside Dimensions(inches/mm): L 11.000XW5.500XH31.267 279.40X 139.70X794.18

Outside Dimensions(inches/mm): L 12.362 XW6.360X H31.780 313.99X 161.54X807.21

aliber: 120mm mortar rounds

Capacity: ~5–6 rounds (120mm)

Alternative Caliber: 5.56mm NATO or 7.62mm NATO

5.56mm Loose Rounds: ~4,500 rounds

7.62mm Linked Rounds: ~1,200 rounds

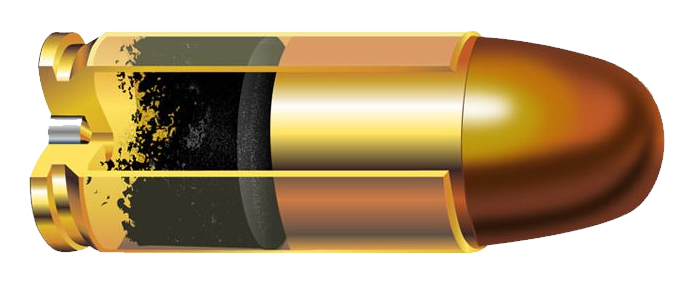

Case: The container that holds all the other ammunition components together. It’s usually made of brass, steel, copper, paper, or plastic.

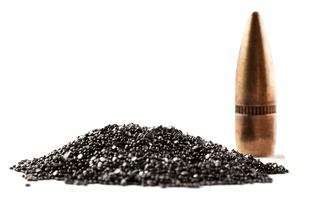

Gunpowder: A chemical mixture that burns rapidly and converts to an expanding gas when ignited. Modern smokeless powder will burn slowly when ignited in the open (outside of the case). Black powder is less stable and can be explosive when impacted or ignited in the open.

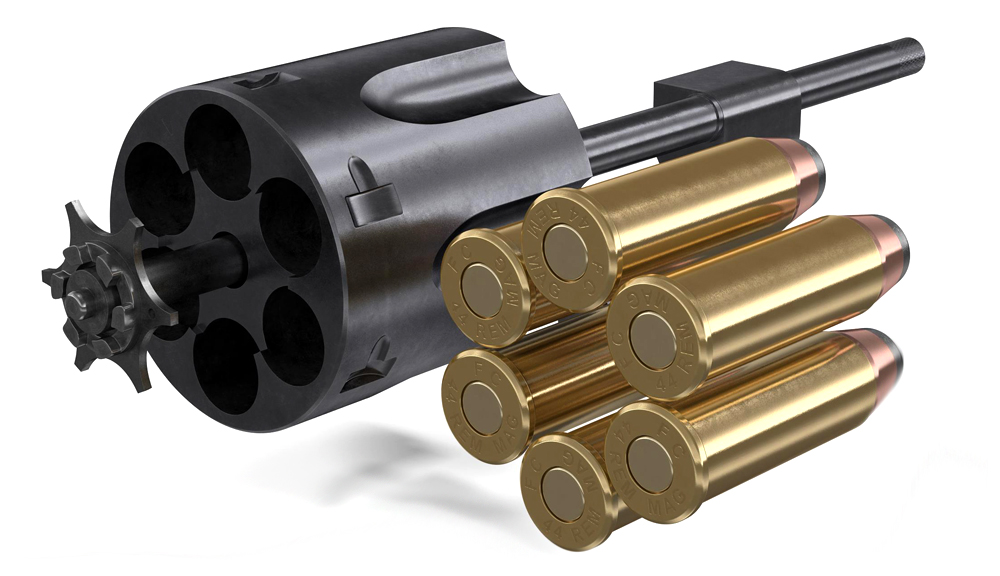

Primer: An explosive chemical compound that ignites the gunpowder when struck by a firing pin. Primer may be placed either in the rim of the case (rimfire) or in the center of the base of the case (centerfire).

Projectile:  The object(s) expelled from the barrel. A bullet is a projectile, usually containing lead, fired through a rifle or handgun barrel. A slug is a solid projectile, usually of lead, fired through a shotgun barrel. Shot is a group of lead, steel, tungsten alloy, or bismuth pellets fired through a shotgun barrel.

Wad: A seal and/or shot container made of paper or plastic separating the powder from the slug or shot in a shotshell. The wad prevents gas from escaping through the shot and holds the shot together as it passes through the barrel.

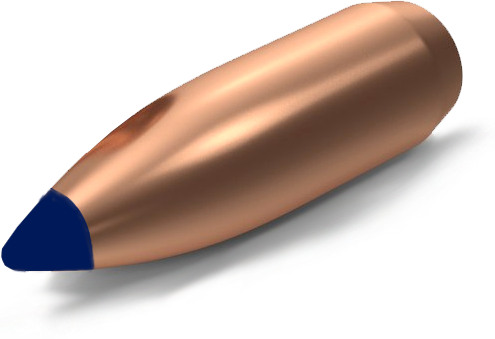

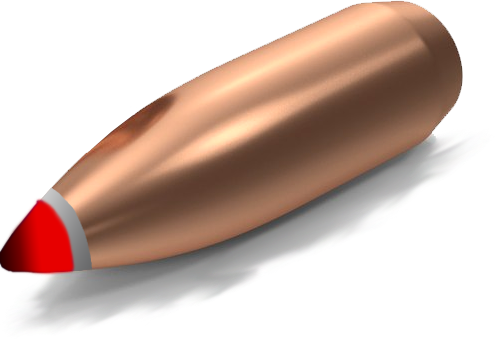

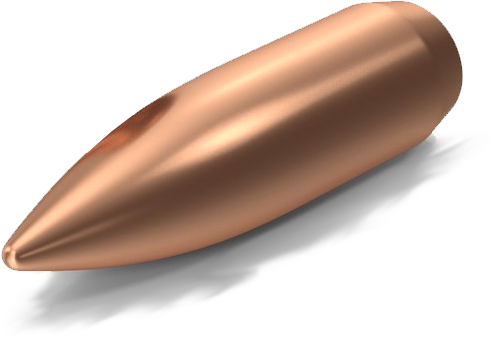

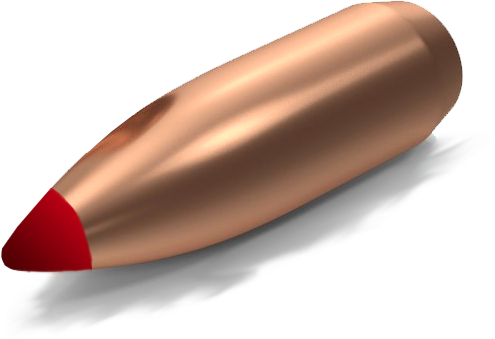

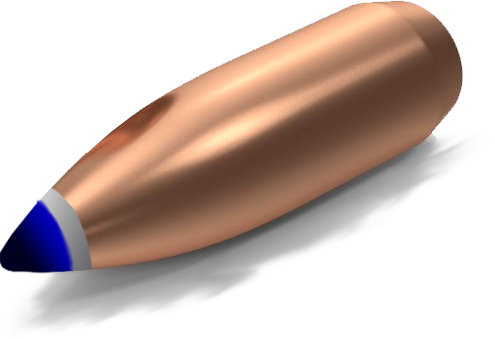

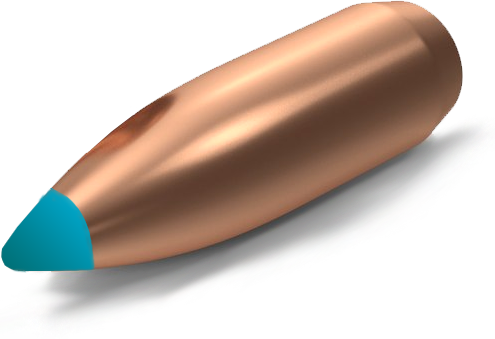

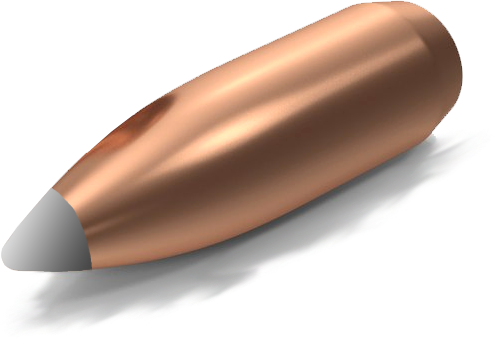

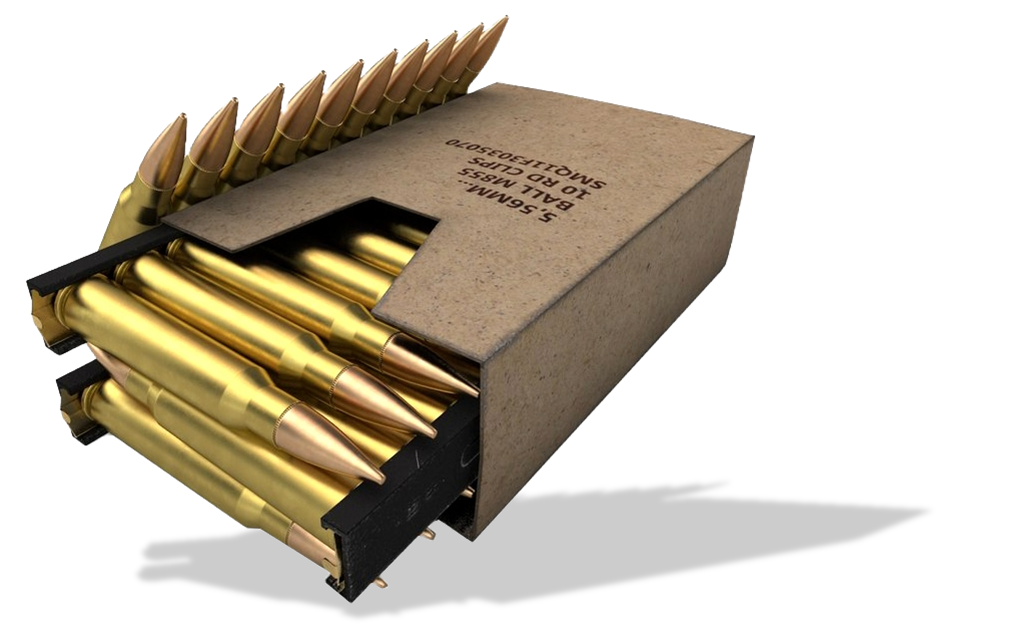

Bullet:The bullet is seated in the neck of the casing, and the casing is clamped down to hold the bullet in place.

Bullets are either “expanding” or full metal jacket.

Expanding rounds are cast with a lead core surrounded by a jacket, which is often made of copper.

A small hole is usually left on the tip of the bullet so it will peel backward like a banana on impact.

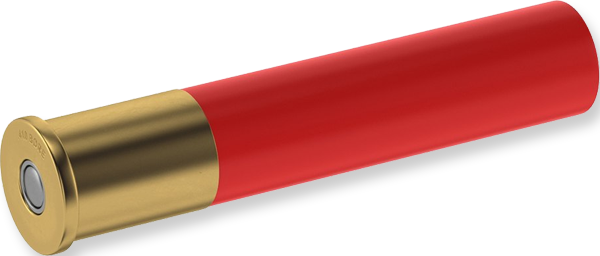

SHOTGUN CARTRIDGES/SHELLS

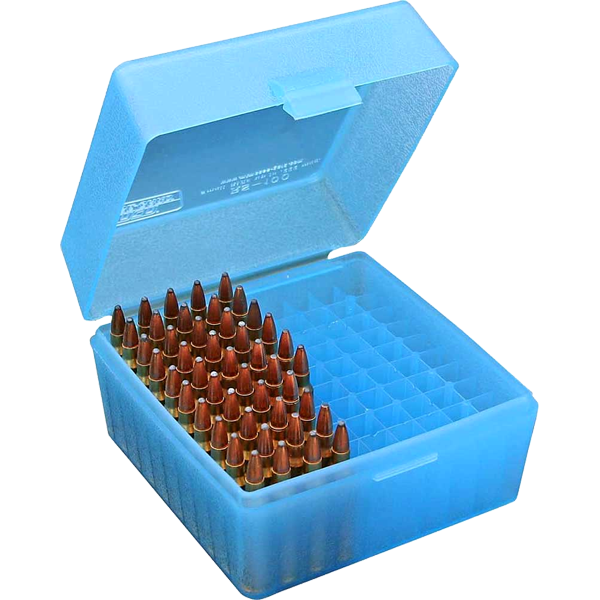

AMMUNITION COMPONENTS

We merchandise the basic components of ammunition (cases, primes, powder, and projectile(s)) and shotshells components (wad).

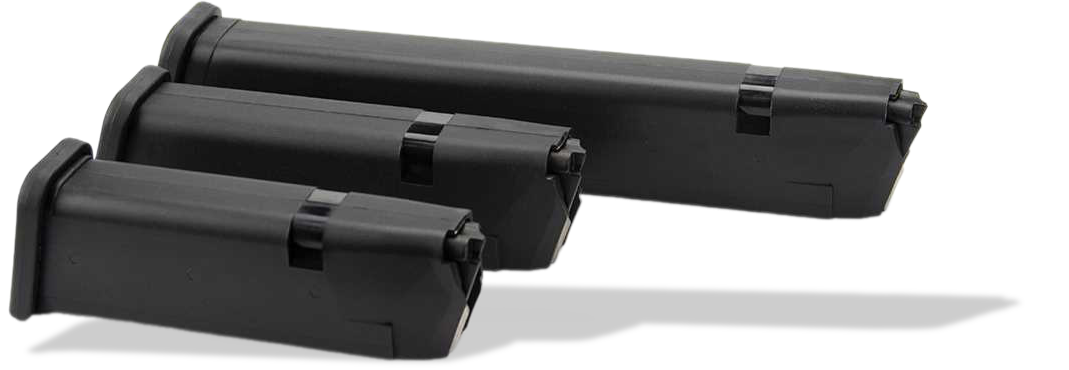

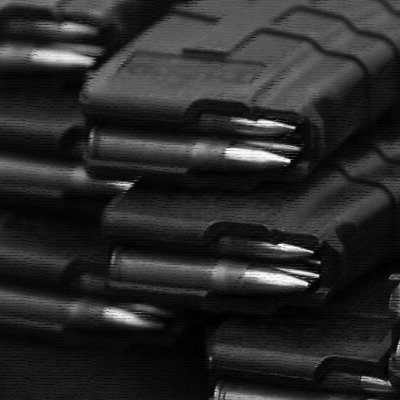

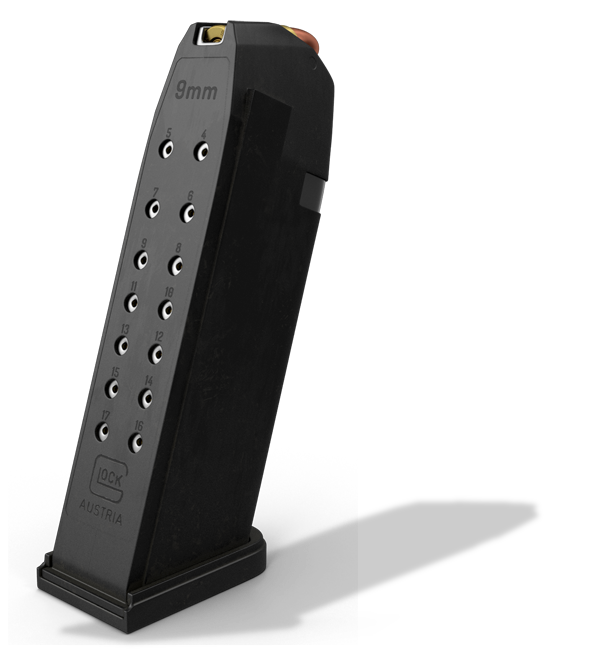

MAGAZINES for PISTOLS & RIFLES

We supply a wide range of magazines for small arms (pistols, rifles and machine guns) in calibres 5.56x45mm, 7.62x39mm, 7.62x51mm, 7.62x54mm, 5.45x39mm and many other.

Contact us on any request and for more details

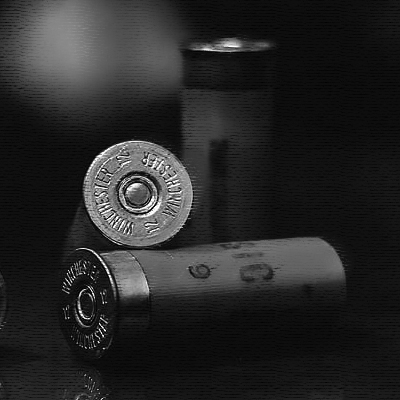

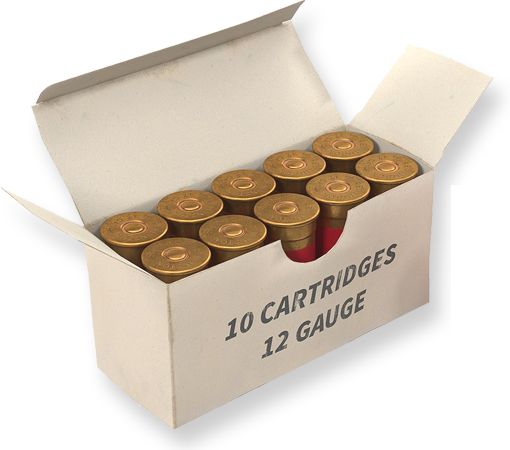

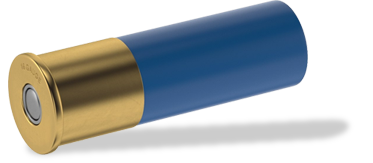

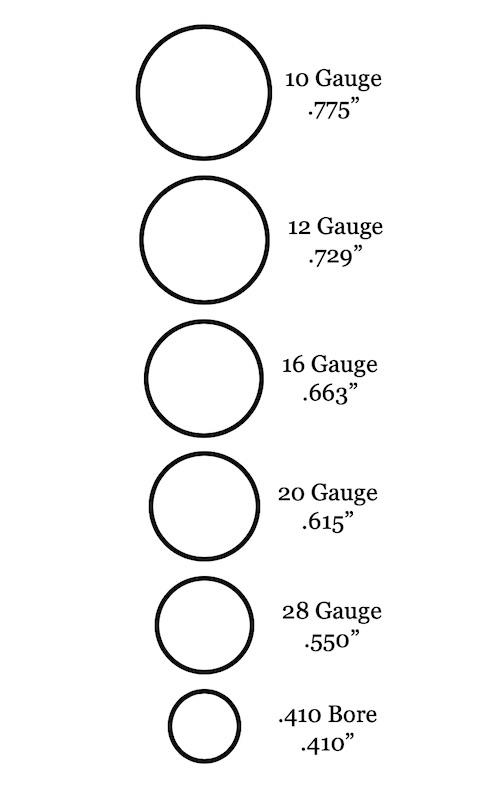

12 GAUGE SHELLS

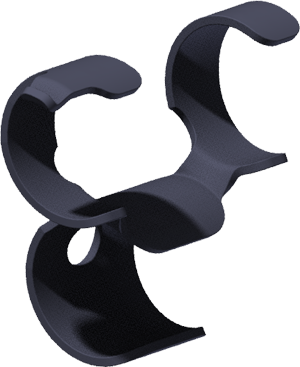

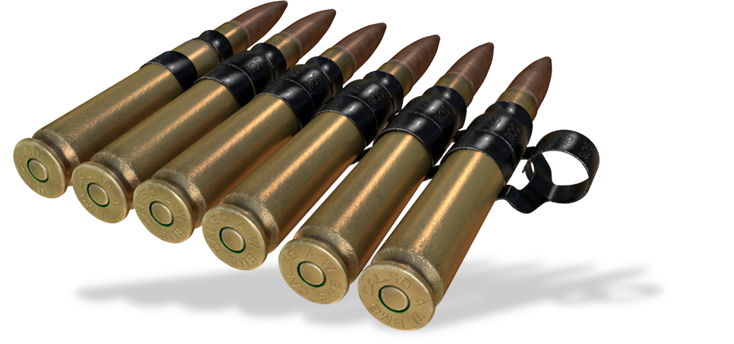

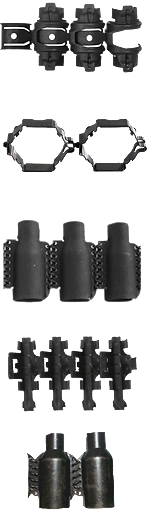

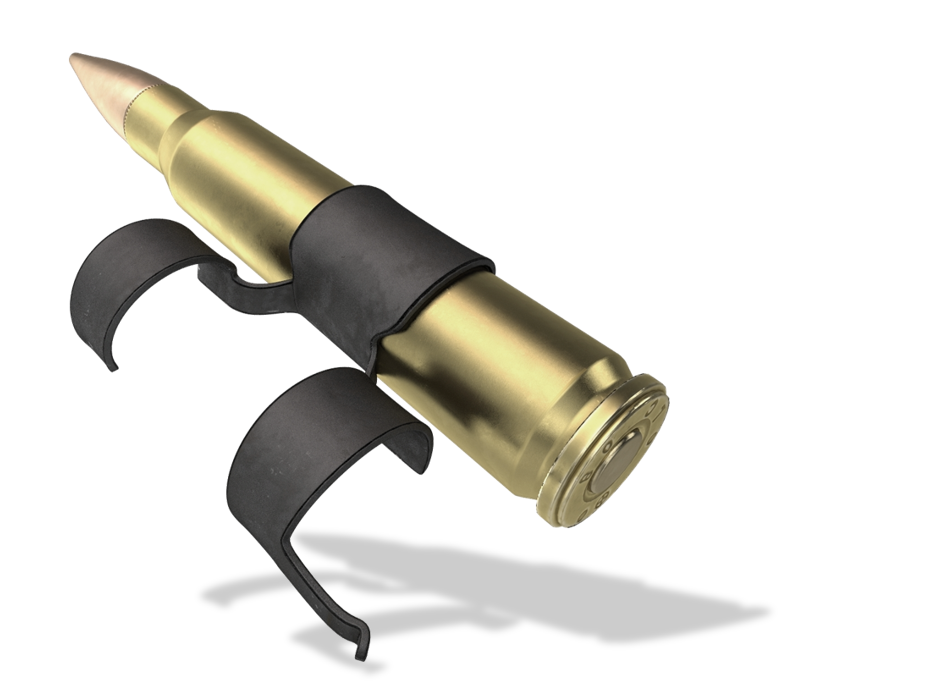

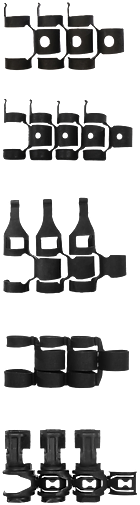

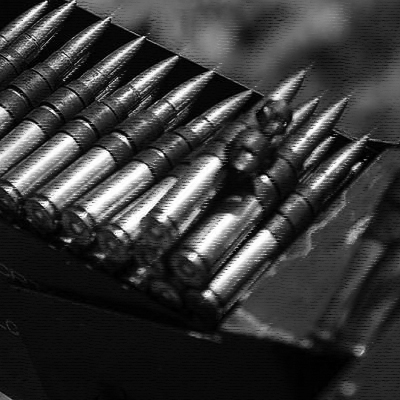

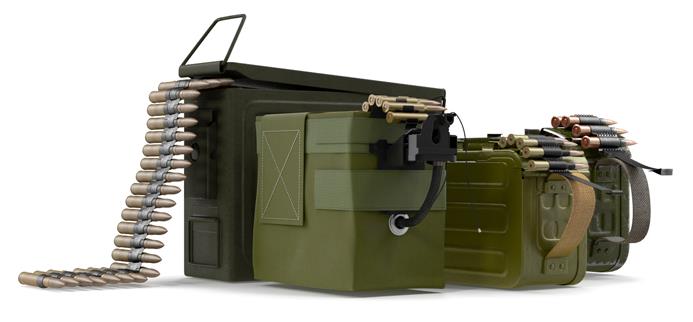

AMMUNITION LINK BELTS

• Save ammo cost by relinking your used links.
• Cuts your ammunition expense.
• The system saves time and makes it much  easier to reload used ammo belts.
• Delink and reload your ammo belt in new order, tracer, dim tracer, etc.
• Delink ammo belt for use in magazines.
• Delink at ammo depot, half or partially used  link belt.
• More time for shooting exercises.

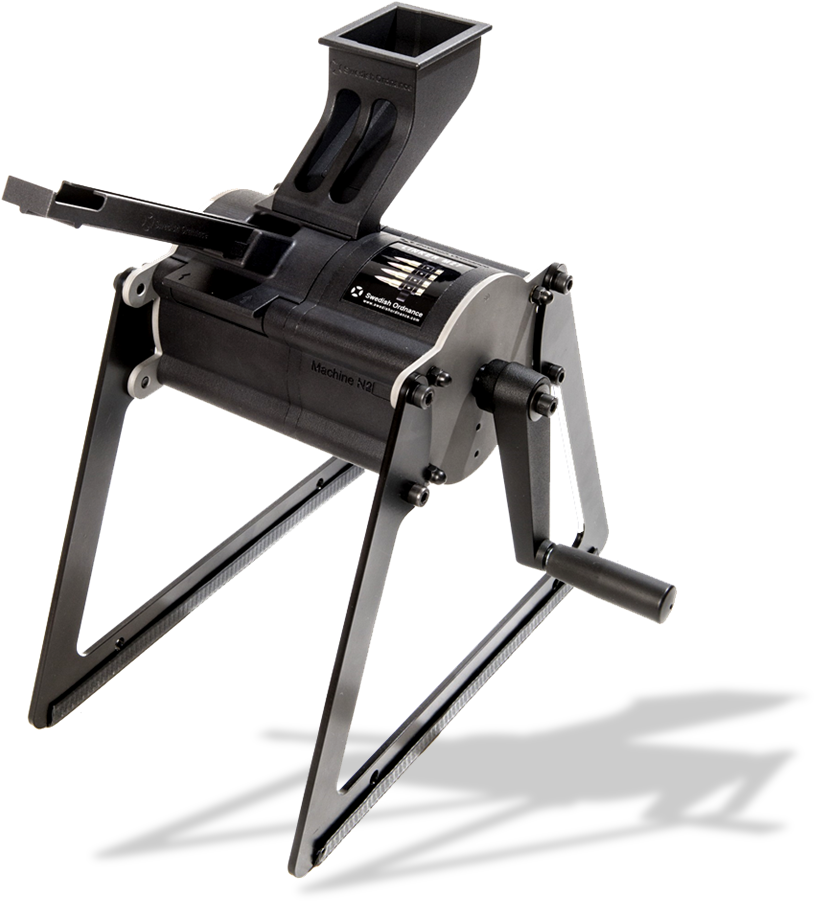

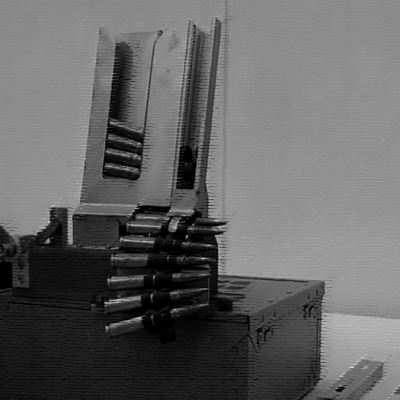

LINKER M27 (5.56x45)

LINKER M13 (7.62x51)

LINKER LINK-BELT DM1 (7.62x51)

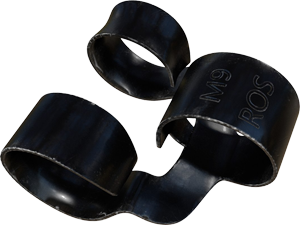

LINKER M9 (12.7x99)

LINKER PKM (7.62x54R)

LINKER NSV (12.7x108)

DELINKER M27 (5.56x45)

DELINKER M13 (7.62x51)

DELINKER link belt DM1 (7.62x51)
