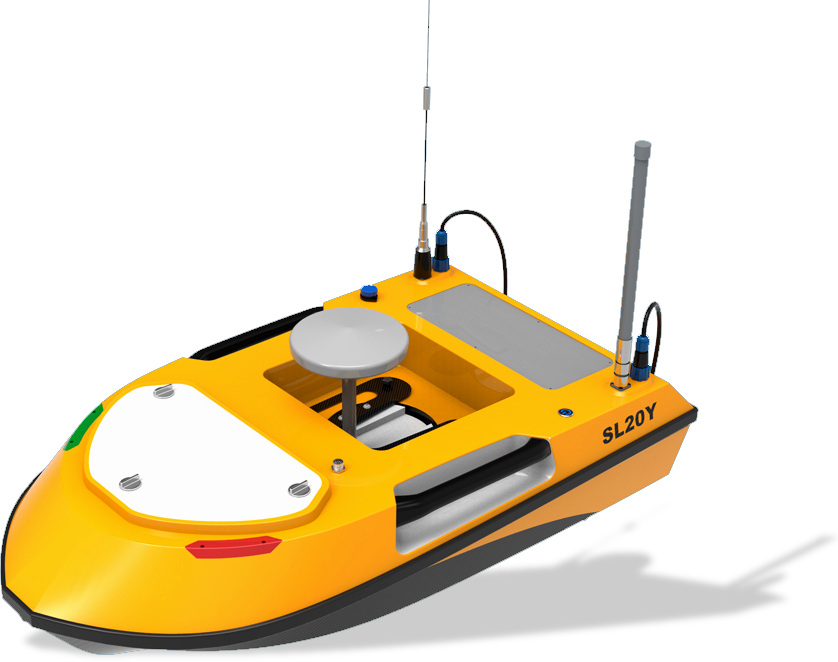

Remote Control Survey Boat SL20Y
The most affordable minimum size surveying USV for one-man operation
Specifications

Hull Material Carbon Fiber
Hull Length 105*55*35 cm
Draft 0.15 m
Weight 14 kg
Payload 10 kg
Motor Water jet propeller
Moon Pool =<190 mm
Remote Control Radio Frequency
Remote Control Frequency 900 MHz/ 868 MHz
Remote Control Range 1 km
Data Telemetry Frequency 900 MHz/ 868 MHz
Data Telemetry Range 2 km
Survey Speed 1-2.5 m/s
Top Speed 4 m/s
Endurance 2 hours @ 2.5m/s
Battery Pack 1 x 33V 40Ah / Quick Battery Replacement

Instrumentation

Sontek RiverSurveyor S5/M9
Teledyne RD Instruments Workhorse Rio Grande
Teledyne RD Instruments River Ray
Teledyne RD Instruments River Pro
Teledyne RD Instruments Rio Pro
Teledyne RD Instruments Stream Pro

Linkquest Flowquest
Real time video monitoring

Options
ADCP telemety module
   Request for Quotation
Flexible operation with remote controller

The SL20Y USV is controlled by a remote controller so that the operator can enjoy a higher level of flexibility and safety in harsh working environment.
MODELING SURFACE
Dedicated pool for different ADCPs
RIVER SURVEYOR M9 ADCP
RIVER RAY ADCP
The 177mm-wide moon pool supports flexible deployment of different ADCPs.
Compact and portable

The SL20Y USV weighs only 15kg and is 105cm long, so it can be carried by one person and transported around in the trunk of a car

TOP 100 INNOVATORS
MTR 2018
ROHS CERTIFIED
IEC CERTIFIED
FCC CERTIFIED
CE CERTIFIED
QMS CERTIFIED
ISO 9001 CERTIFIED
INTERNATIONAL STANDARDS CERTIFIED
High speed and tangle free

The innovative propeller system allows the SL20Y USV to sail at 5m/s at highest without worrying about being entangled by water plants or rubbishes.
