Parameters (L30 Model for the Fighting & Rescue Vessel)


Height 420cm

Width 270cm

Overall length 750cm

Max Speed 46 knot

Propeller Outboard Motor

Weight 3.75t

Full load draught 0.6 m

Sea State 4

Communication 15km

Endurance 300Nm.





Water Cannon Parameter



Range >30m

Flow rate 40 (L/S)

Working Pressure Range 0.8 MPa

Maximum Spary Pressure 0.2 ~ 1.4 MPa

Maximum Spray Angle >=95 degree

Pitching Angle 30 - 90 degree

Horizontal Rotation Angle 360 degree

L30 is a big platform for fire control on water. It carries professional fire water cannon equipment with 50m distance, and also life rafts & buoys.


The life raft could be released by remote control to rescue the drowning personnel.


There is a cockpit similar to a yacht which makes it available for 4-6 crews on board.


The speed of this vessel is up to 40 Knot, fast enough for most sea condition and emergency response

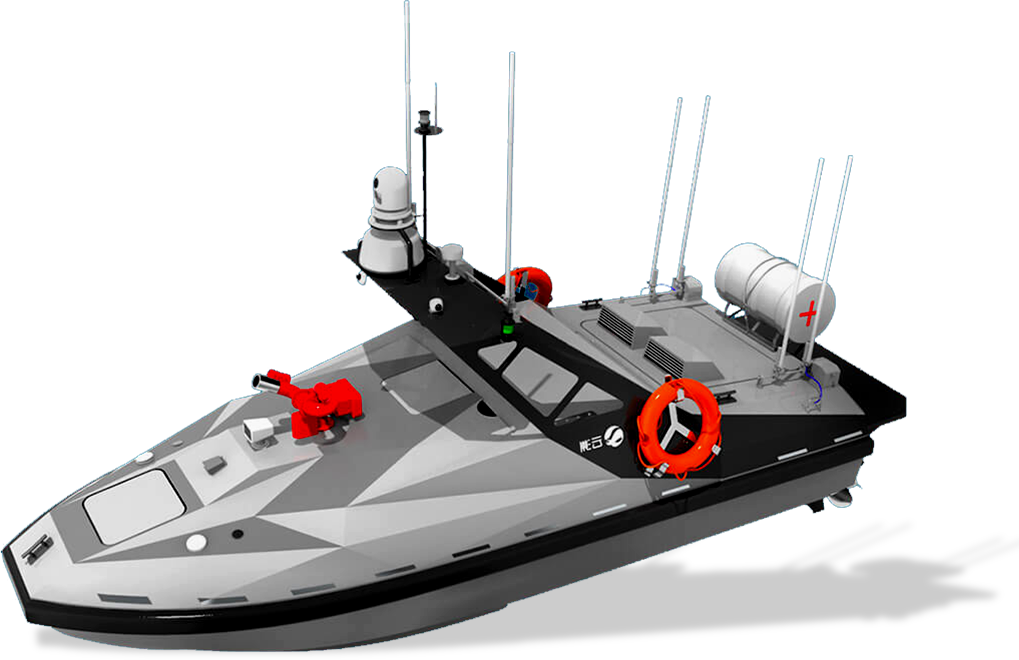

Autonomous Firefighting Vessel L30

Fast-response in marine fire emergency

Multi-screen control base station



The multi-screen control base station can be deployed in a shore-based command center, on a mothership, or in a moving vehicle, depending on the scenario

Equipped with smart rescue equipment
The USV is deployed with smart rescue equipment

Quick response to emergency

The USV runs on a high speed water jet motor and the maximum speed can reach 30 kn, facilitating quick response to emergencies.

Unmanned firefighter is equipped with a water cannon, the L30 USV can respond briskly to marine fire accident.

Unmanned firefighter



Equipped with a water cannon, the L30 USV can respond briskly to marine fire accident.

Radar
Front Camera
Water Cannon
Search Light
Optical Eye
GNSS
Side Camera
Left Raft
Twin Propeller
