Hydrographic survey is the most common and well-developed field in which unmanned surface vehicles are applied.

Such surveys usually take long sail time and constant back and forth round-turns, posting significant challenges to the safety and wellness of surveyors.

The autonomous navigation system of our Hydrography survey USVs can release personal from such repeated, tedious works.

Besides, with close cooperation with instrument manufacturers, our USVs are designed to provide the best support for instruments, such as single beam echo sounder, multibeam echo sounder, side-scan sonar, and ADCP to acquire high-quality data.

Unique hull design, low noise engine, and advanced navigation algorithm are the core technologies that keep us leading in the industry.
USV (Unmanned Surface Vehicles) are remote control or autonomous intelligent water surface robots which are able to fulfill multiple tasks.

These are modular designed with multiple functions and safe replacement for human's work.
Hydrographic survey
Autonomous Navigation & Intelligent Obstacle Avoidance

- Autonomous Navigation Control system with intellectual property right
- GNSS autonomous navigation due to obstacle avoidance technology and advanced navigation algorithm
Hull Material

- Composite materials of carbon fiber, fiberglass and Kevlar fabric
- Separated cabin design; Water Proof , Anti-sinking , Anti-Capsizing
Data Communication

- Long distance radio communication
- Real time data and video transmission
Multi-Mission Platform

Universal Data interface, power supply and mechanical structure
Green Energy

- High Capacity lithium ion polymer battery
- Long endurance and safely packed
Intelligent Control Terminal

- Base Station-Map download, Mission planning and monitoring, Survey data acquisition, Boat control
- Remote Controller / Manual control, Mission and boat status
Autonomous Cargo Ship
Next generation of maritime transportation
1.05 m; 5 m/s; 10 kg

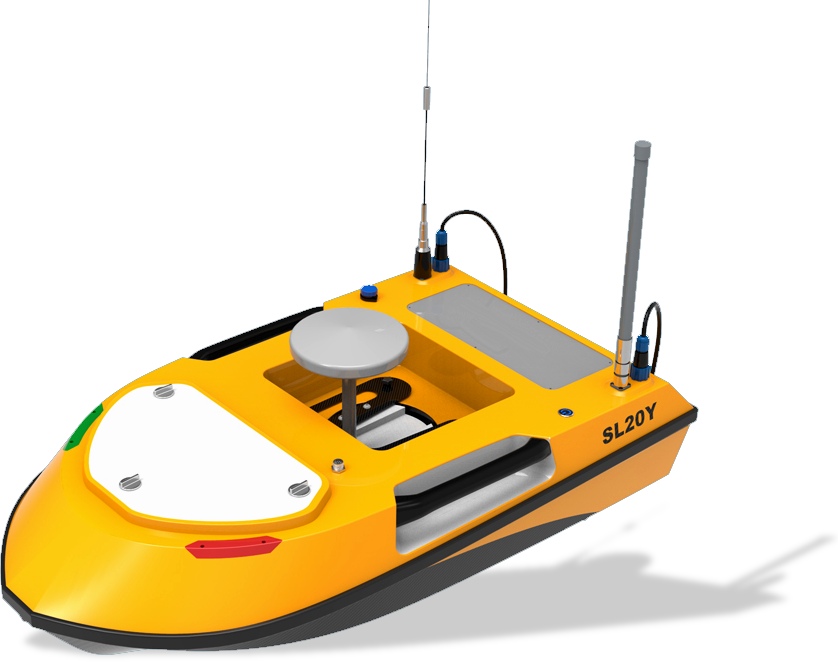

An auto-pilot one-man operation platform for ADCPs
Weight: 17 kg
Payload: 10 kg
Draft: 15 cm
Propulsion: Duct type thruster
1.6 m; 5 m/s; 15 kg

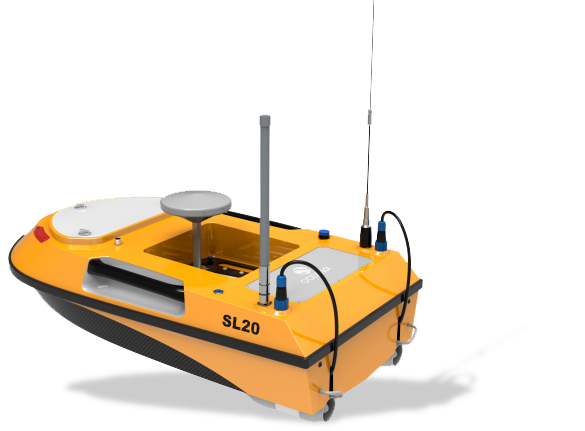

Waterjet auto platform for water discharge and bathymetry measurement
2.5 m; 5 m/s; 50 kg

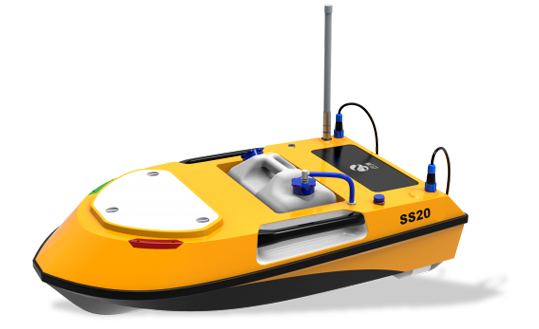

Convertible catamaran USV platform for hydrographic survey
3.3 m; 10 knots; 65 kg
A state of the art hydrographic platform designed for multi beam survey
5.65 m; 12 knots; 150 kg
Long endurance multifunctional platform for hydrographic survey
5.27 m; 30 knots; 200 kg

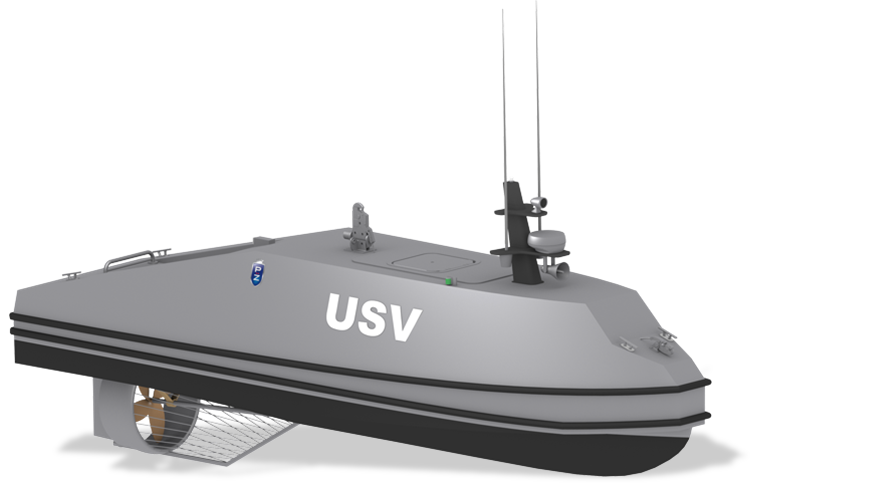

High-speed surveillance and outstanding performance at night shifts
7.5m; 46 knots; 500 kg

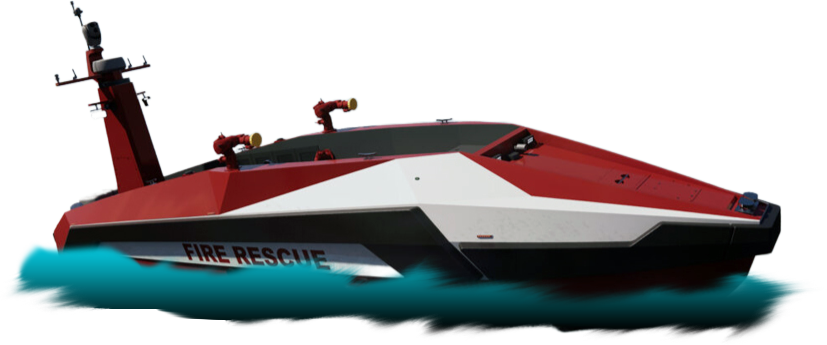

Fast-response in marine fire emergency

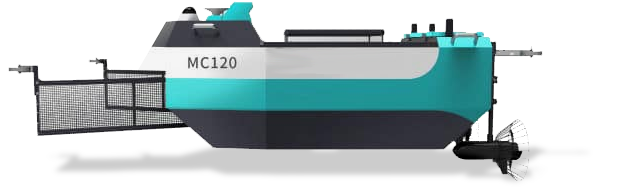

High Efficiency Cleaning
Single battery lifetime 6 hours, can clean up 360kg of rubbish per day in maximum. At lease 4 times the efficiency compared to traditional cleaning methods.

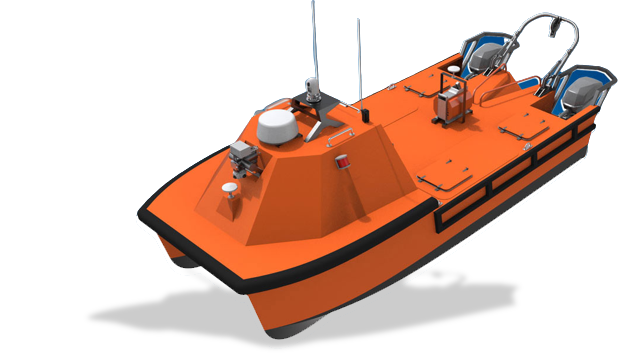

L25 - Multi-function Marine Survey USV

Hydrographic Survey USV

Dimension: (L)7.5 m *(W)2.8 m*3mH

Weight: 2400 kg

Payload: 200 kg

Draft: 40 cm

Hull Material: Carbon fiber
Dimension: (L)165 cm *(W)70 cm
Weight: 44 kg (with batteries

Payload: 25 kg

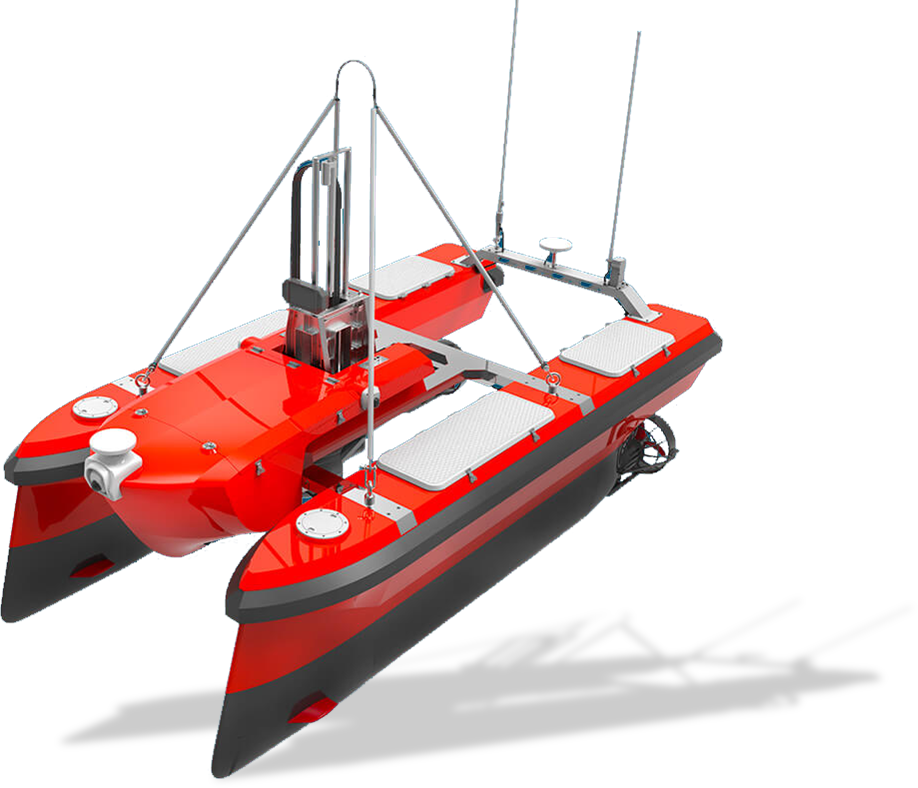

M40P is a multi-purpose surveying unmanned surface vessel (USV) platform for estuary, on-shore, and off-shore applications.
